FNIRSI® HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI® HRM-10 Battery Voltage Internal Resistance Tester

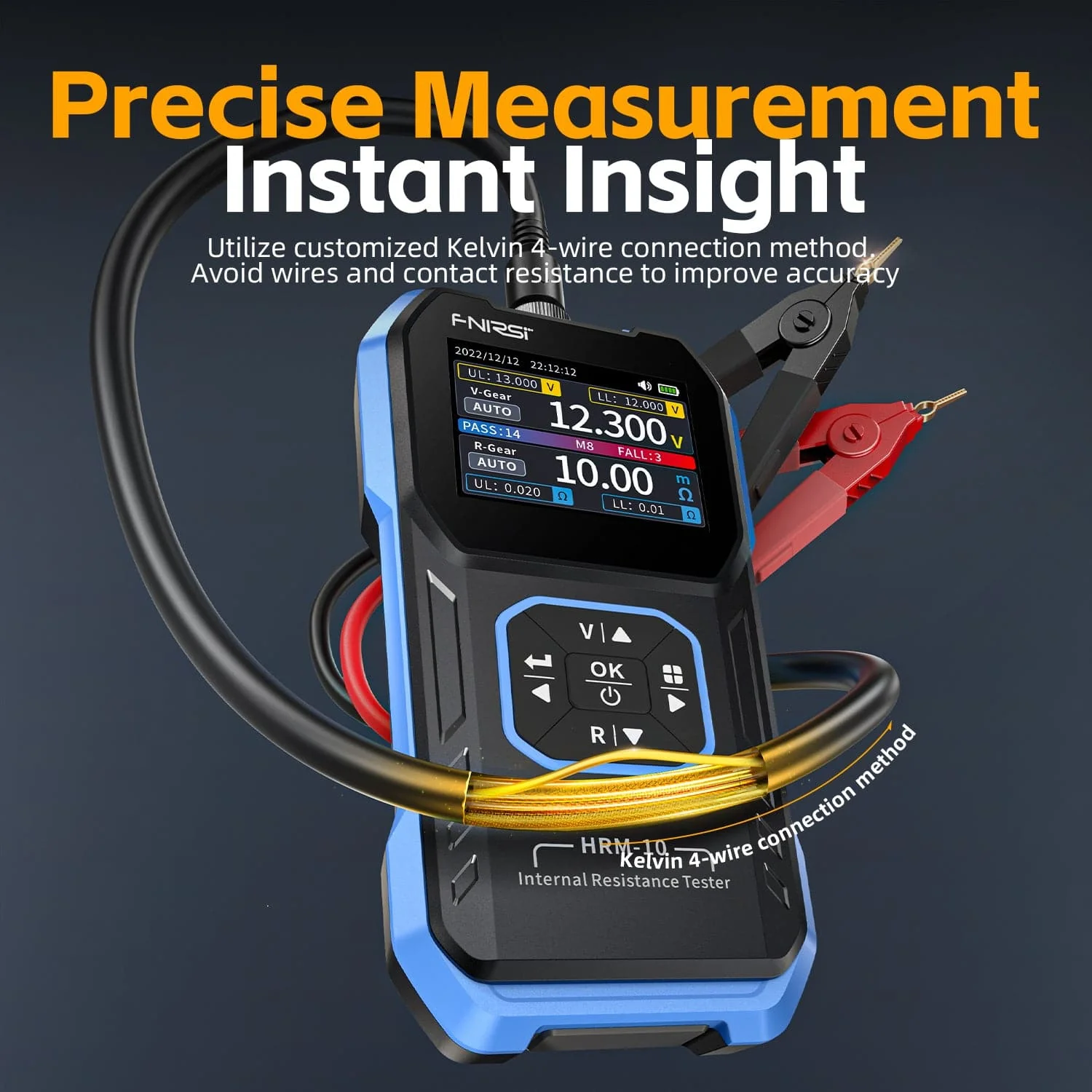

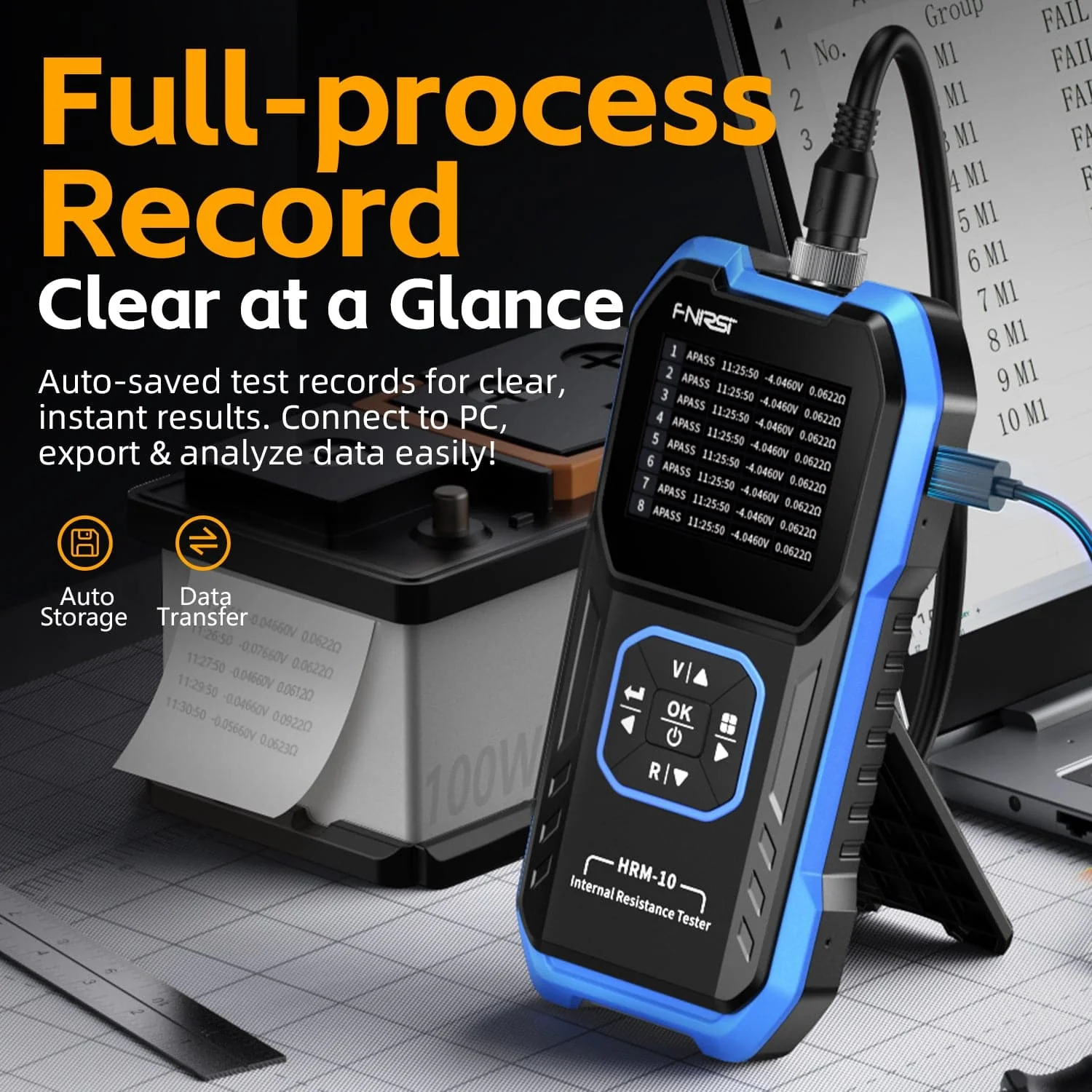

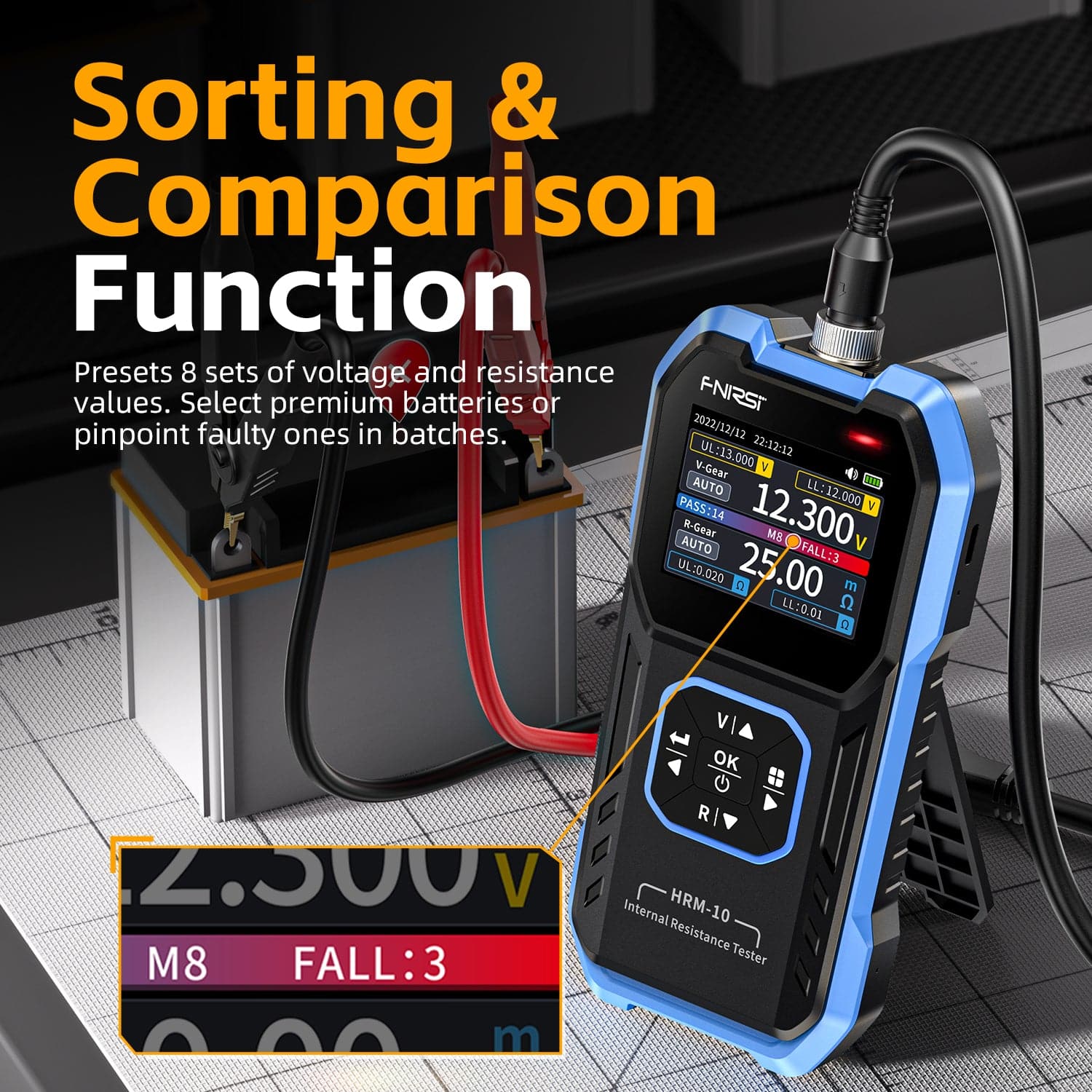

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Specifications

Brand

FNIRSI

Model

HRM-10

Type

Vehicle Battery Tester

Voltage Measuring Range

0 ~ ±100V (DC)

Voltage Gear

Auto, 1V, 10V, 100V

Resistance Measuring Range

0 ~ 200Ω

Resistance Gear

Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Accuracy

±0.5%

Signal Frequency

AC 1Khz

Rechargeable

Type-C Intrrface (5V/1A)

Battery

1000mAh lithium battery

User Calibration

Support

Sorting Mode

Support

History Recoed

Support

Recorded Data Export

Support

Working Environment

-10℃ ~ +45℃, relative humidity < 80%

Storage Environment

-20℃ ~ +80℃, relative humidity < 80%

Size

158.7x80.5x28.4mm

Weight

225g

More Product Details

Select Style

From $14.34

Original: $47.80

-70%

FNIRSI® HRM-10 Battery Voltage Internal Resistance Tester—

$47.80

$14.34

Product Information

Shipping & Returns

Description

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Specifications

Brand

FNIRSI

Model

HRM-10

Type

Vehicle Battery Tester

Voltage Measuring Range

0 ~ ±100V (DC)

Voltage Gear

Auto, 1V, 10V, 100V

Resistance Measuring Range

0 ~ 200Ω

Resistance Gear

Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Accuracy

±0.5%

Signal Frequency

AC 1Khz

Rechargeable

Type-C Intrrface (5V/1A)

Battery

1000mAh lithium battery

User Calibration

Support

Sorting Mode

Support

History Recoed

Support

Recorded Data Export

Support

Working Environment

-10℃ ~ +45℃, relative humidity < 80%

Storage Environment

-20℃ ~ +80℃, relative humidity < 80%

Size

158.7x80.5x28.4mm

Weight

225g

More Product Details
